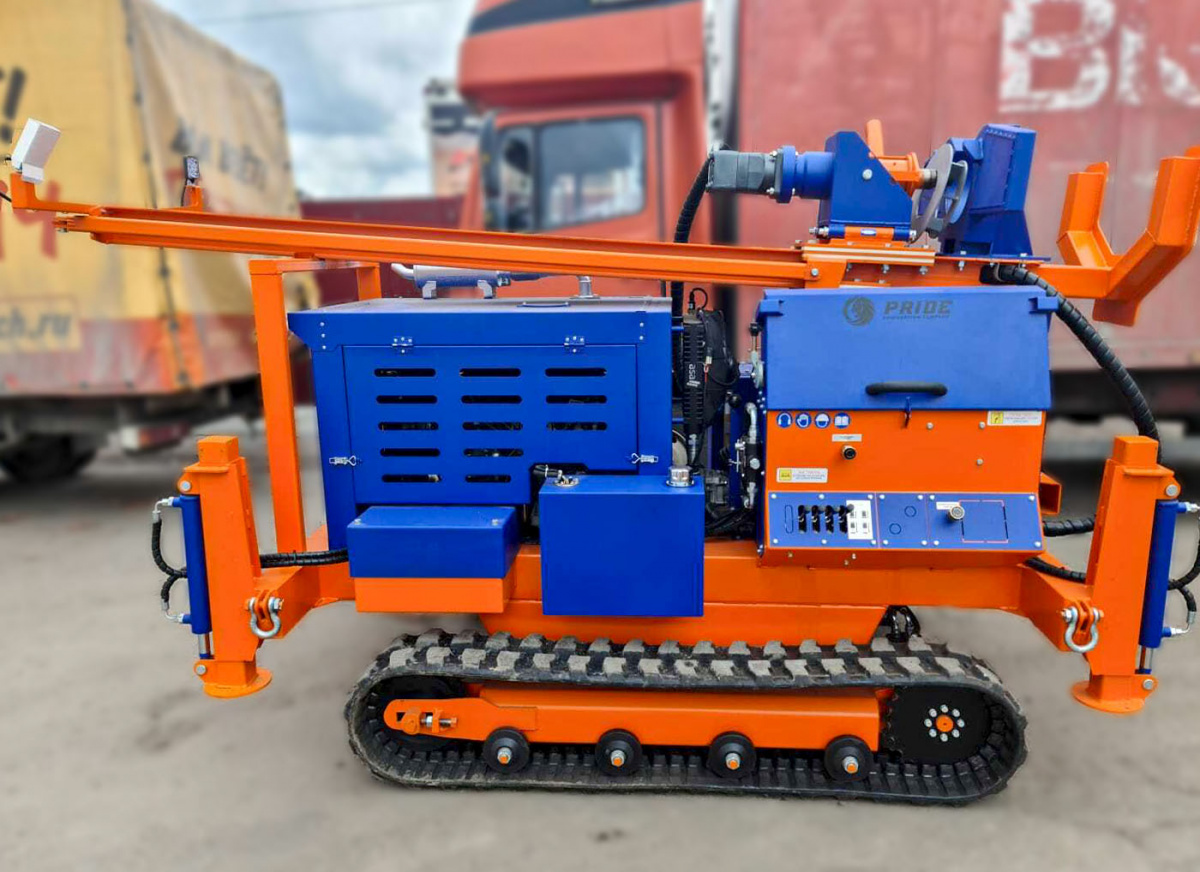

TITAN 80 Gasoline

Description
Specifications

Description

The rig can be equipped with a remote control (except for the economy of execution), which allows you to control drilling when the driller is in close proximity to the wellhead.
When the rig is equipped with a hydraulic rotary reducer (maximum torque 2000, 4000 N / m), equipped with a drilling fluid supply unit for washing or compressed air supply for work with purge and air hammer is not required.
In the basic configuration, the unit is equipped with a 2-flow hydraulic system, which allows you to independently adjust the force on the face and rotation of the tool.
Carriage feed - on hydraulic cylinder or chain.
The rig can be equipped with a hydraulic auxiliary winch, hydraulic outriggers.
It is possible to increase the mast to work with the pipe up to 3 meters
The powder coating of the elements increases the corrosion resistance.

Specifications

Parameters	Quantity
OPERATING
Max. initial diamete, mm	300
Grade of formation for drilling	12
Max drilling depth, m	150
Dimensions, mm
- Length - Width - Height	3100 1220 1700
Mass, kg	1500
SWIVEL
Type	Hydraulic oil motor with mounting group	Reducing gear box
Rotative moment, (Нм)	1200	2000 (optionally till 4000)
Rotation speed, (sev/min)
I gear II gear	130 (optionally till 420)	0-160 0-80
MAST
Type	Chain drive	Hydrocylinder
Pulling force, (kg):
- up - down	2000 2000	5000 3000
Carriage movement, (mm)	1000-3500	1680, 2200
Speed, m/sec	0,43	0,42
HIGH-PRESSURE PUMP STATION
Type	Gasoline
Power, h.p.	80
CHASSIS
Type of crawlers	rubber-metal
Width of crawler, mm	230
Speed, km/h	6
OPTION MODULE
Hydroclamp of drilling pipe	optionally
Hydroclamp of casing pipe	optionally
Hydraulic casing oscillator	optionally
Mechanical outriggers	optionally
Hydraulic outriggers	optionally
Wrench	optionally
Anchoring system	optionally
