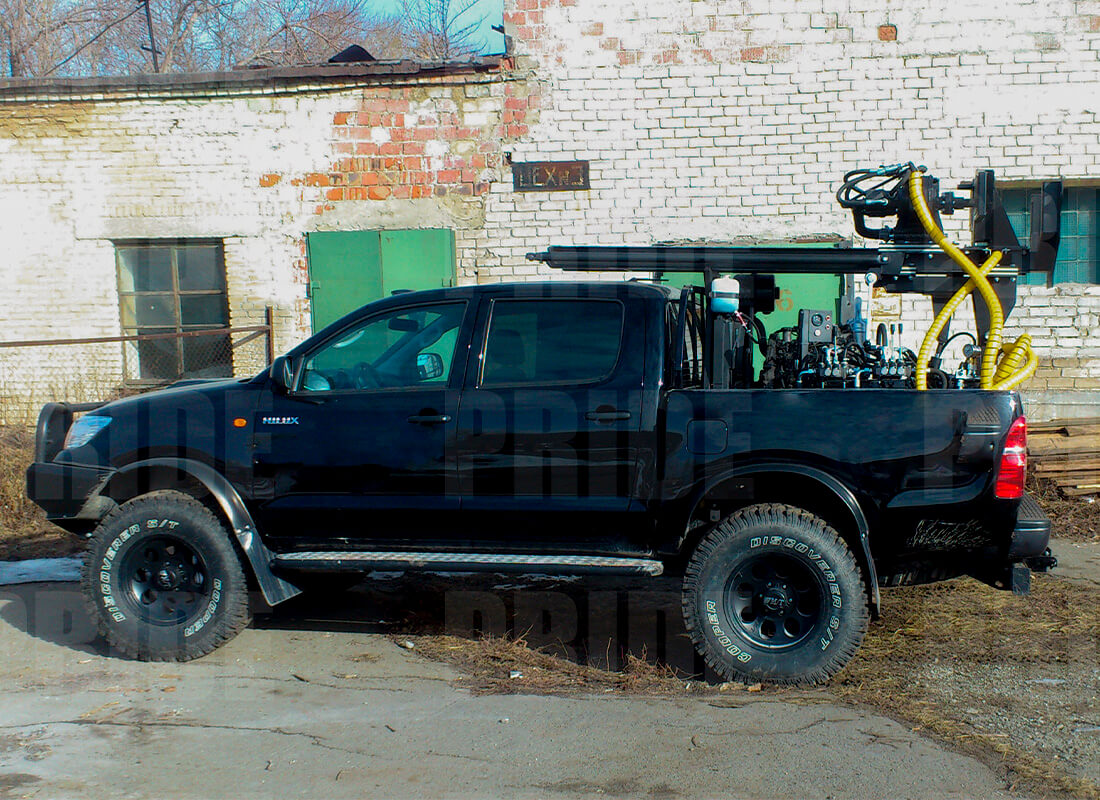

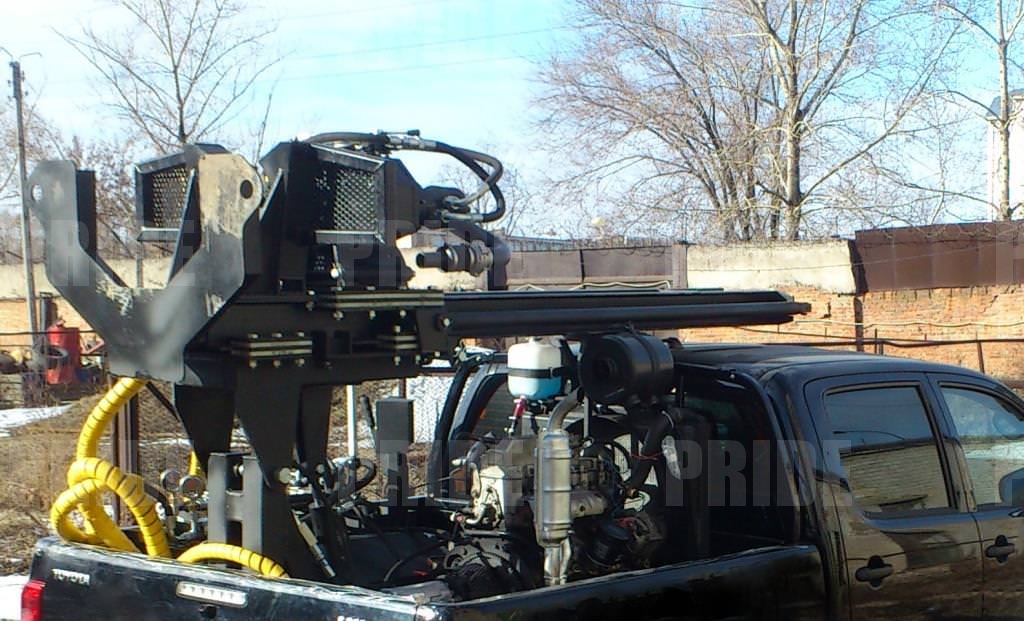

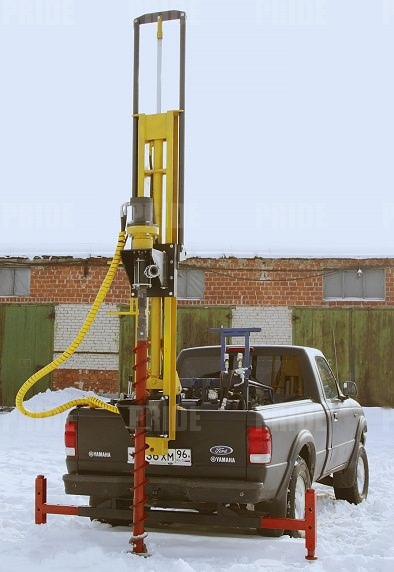

MOUNT 20

Description
Specifications

Description

* The price is without the cost of the chassis.

The rig can be equipped with a remote control (except for the economy of execution), which allows you to control drilling when the driller is in close proximity to the wellhead.
When the rig is equipped with a hydraulic rotary reducer (maximum torque 2000, 4000 N / m), equipped with a drilling fluid supply unit for washing or compressed air supply for work with purge and air hammer is not required.

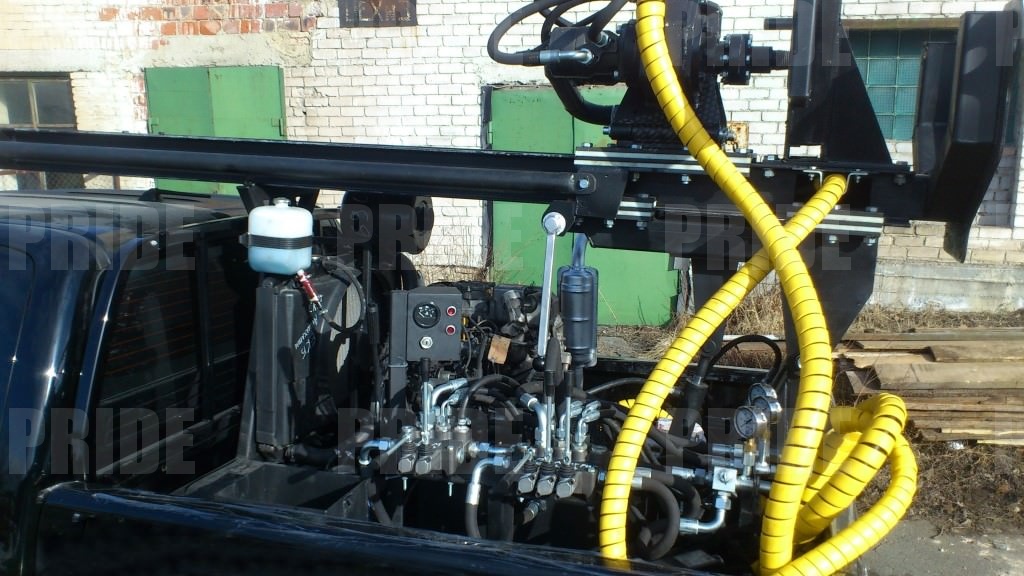

In the basic configuration, the unit is equipped with a 2-flow hydraulic system, which allows you to independently adjust the force on the face and rotation of the tool.
Carriage feed - on hydraulic cylinder or chain.
The rig can be equipped with a hydraulic auxiliary winch, hydraulic outriggers.
It is possible to increase the mast to work with the pipe up to 3 meters
The powder coating of the elements increases the corrosion resistance.

Specifications

Parameters	Quantity
OPERATING
Max. initial diamete, mm	300
Grade of formation for drilling	9
Max drilling depth, m	100
Dimensions, mm
- Length - Width - Hight	3100 1260 1300
Mass, kg	750
SWIVEL
Type	Hydraulic oil motor with mounting group
Rotative moment, (Нм)	660 (optionally till 1060)
Rotation speed, (sev/min)	120 (optionally till 220)
MAST
Type	Chain drive	Hydrocylinder
Pulling force, (kg):
- up - down	1800 1800	4100 2450
Carriage movement, (mm)	1000-2200	1680, 2200
Speed, m/sec	0,35	0,41

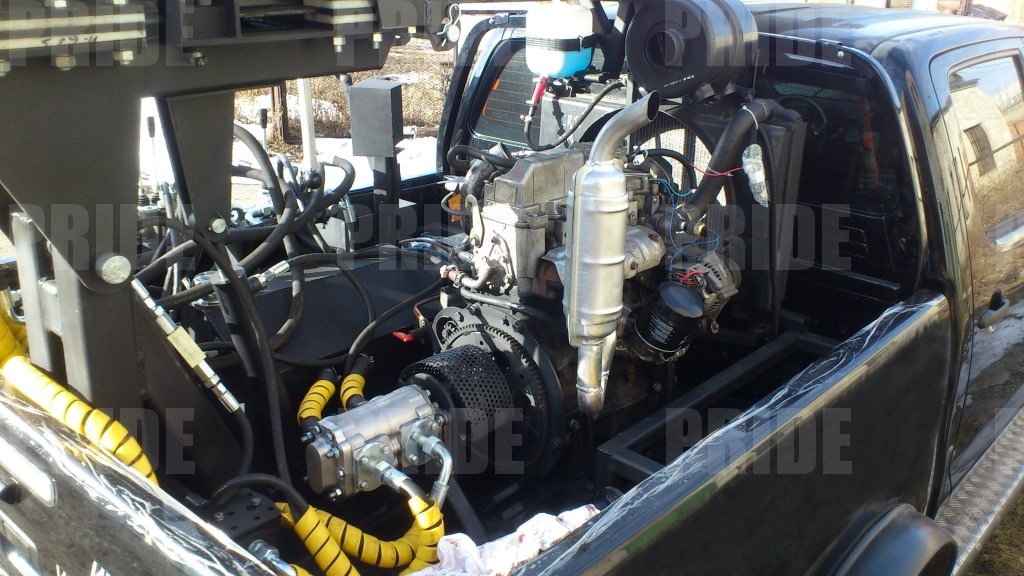

HIGH-PRESSURE PUMP STATION
Type	Gasoline
Power, h.p.	24
CHASSIS
Type	Truck
OPTION MODULE
Hydroclamp of drilling pipe	optionally
Hydroclamp of casing pipe	optionally
Hydraulic casing oscillator	optionally
Mechanical outriggers	optionally
Hydraulic outriggers	optionally
Wrench	optionally
Anchoring system	optionally

MOUNT 20

MOUNT 20

Description

Specifications

Categories

Watching now

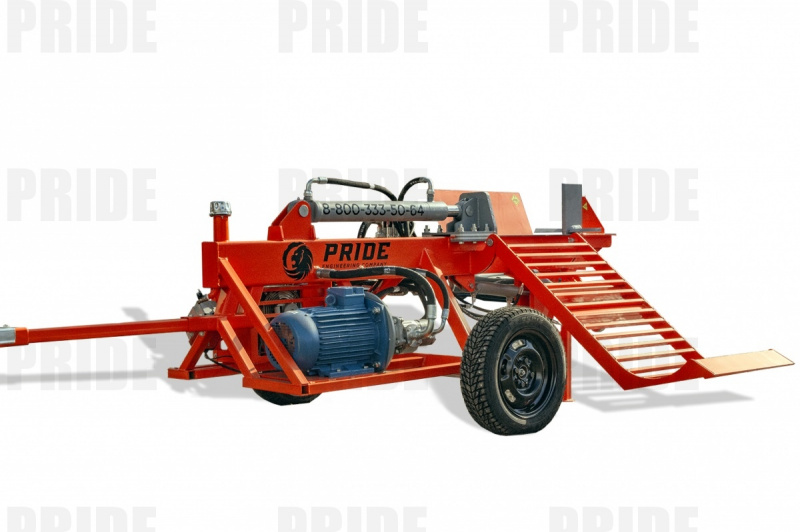

Pipe bursting rig 30 ton

MKZIA-M

MBSH-509 tracked

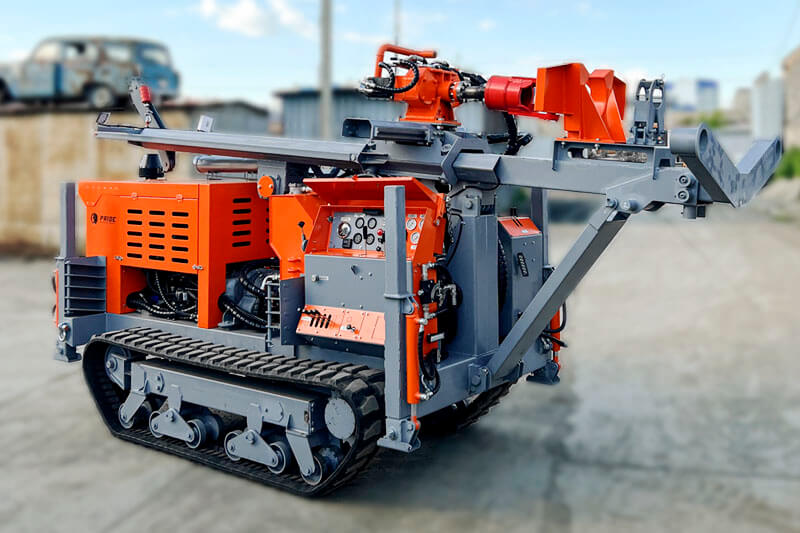

TITAN Compact
