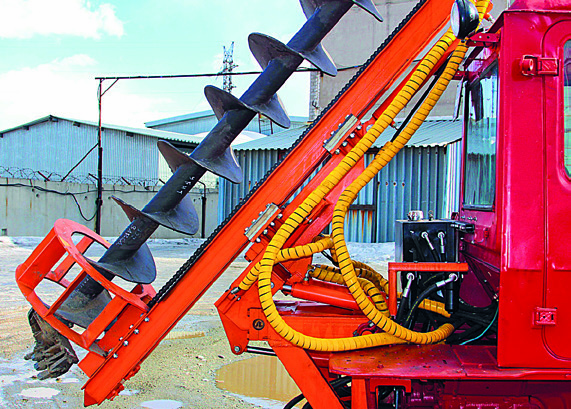

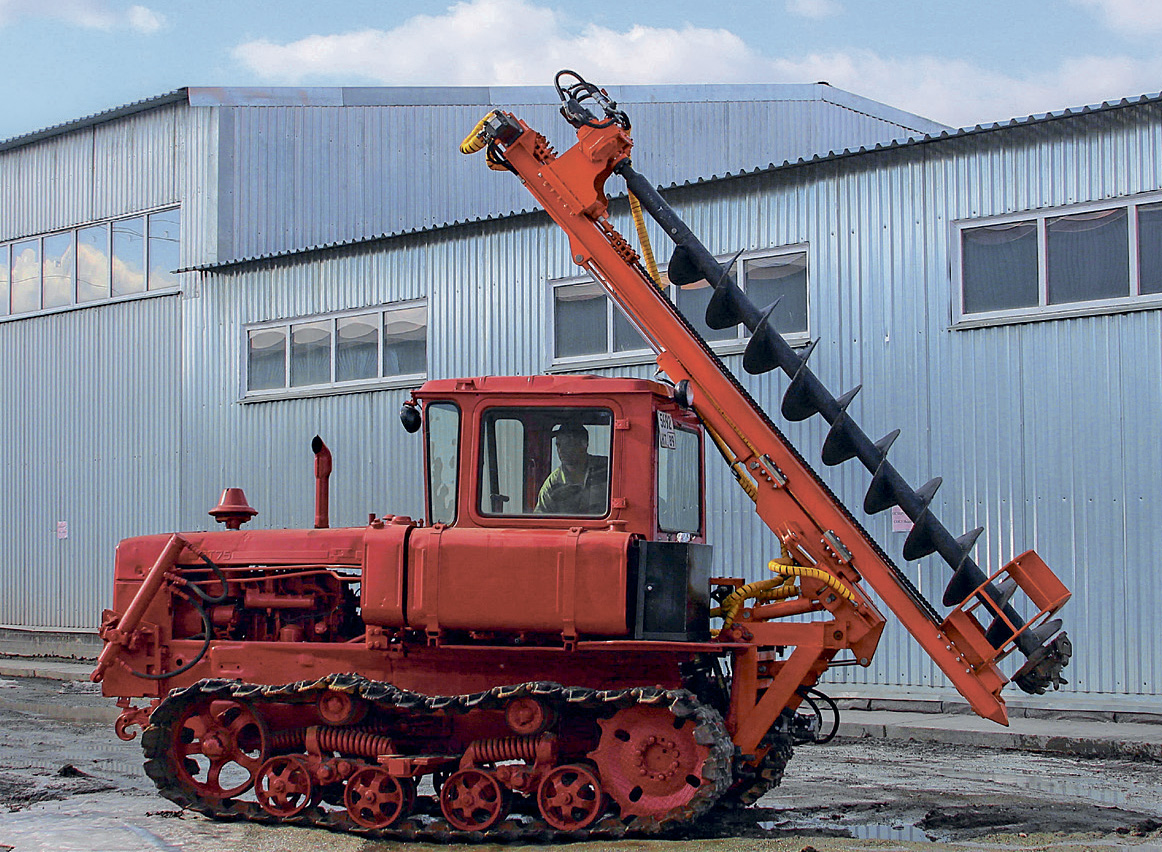

UBN-T

UBN-T

  • Description
  • Specifications

Description

The rig can be equipped with a remote control (except for the economy of execution), which allows you to control drilling when the driller is in close proximity to the wellhead.
When the rig is equipped with a hydraulic rotary reducer (maximum torque 2000, 4000 N / m), equipped with a drilling fluid supply unit for washing or compressed air supply for work with purge and air hammer is not required.
In the basic configuration, the unit is equipped with a 2-flow hydraulic system, which allows you to independently adjust the force on the face and rotation of the tool.
Carriage feed - on hydraulic cylinder or chain.
The rig can be equipped with a hydraulic auxiliary winch, hydraulic outriggers.
It is possible to increase the mast to work with the pipe up to 3 meters

Specifications

Rig power Depending on the model of the tractor. It is connected to the hydraulic system of the tractor
Strength category of rocks Up to 9 (up to 4 screws)
The maximum initial diameter of the bit is mm
 300
Depth of drilling m
 With washing up to 150
With air 50
Screw (f 150 mm) Up to 35
Feeding force down, kg
 2600
Effort to rise, kg   3900
Speed of carriage lift m/s up to 0,3
Turn of the turntable mm
 1680 (optional up to 3100)
The rotational speed of the rotator is rpm
 10 - 170 (optionally up to 600)
Max. Torque, Nm
 1430 (optional up to 6000)
Weight, kg
 300
