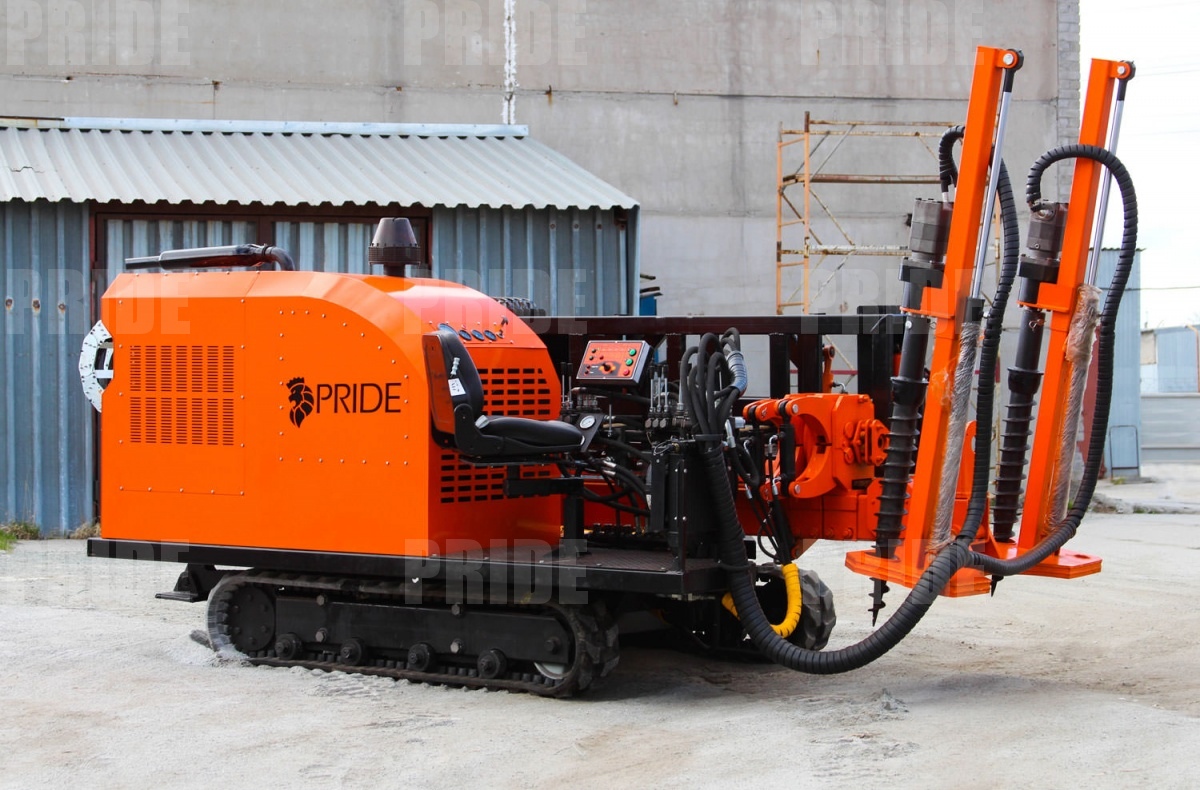

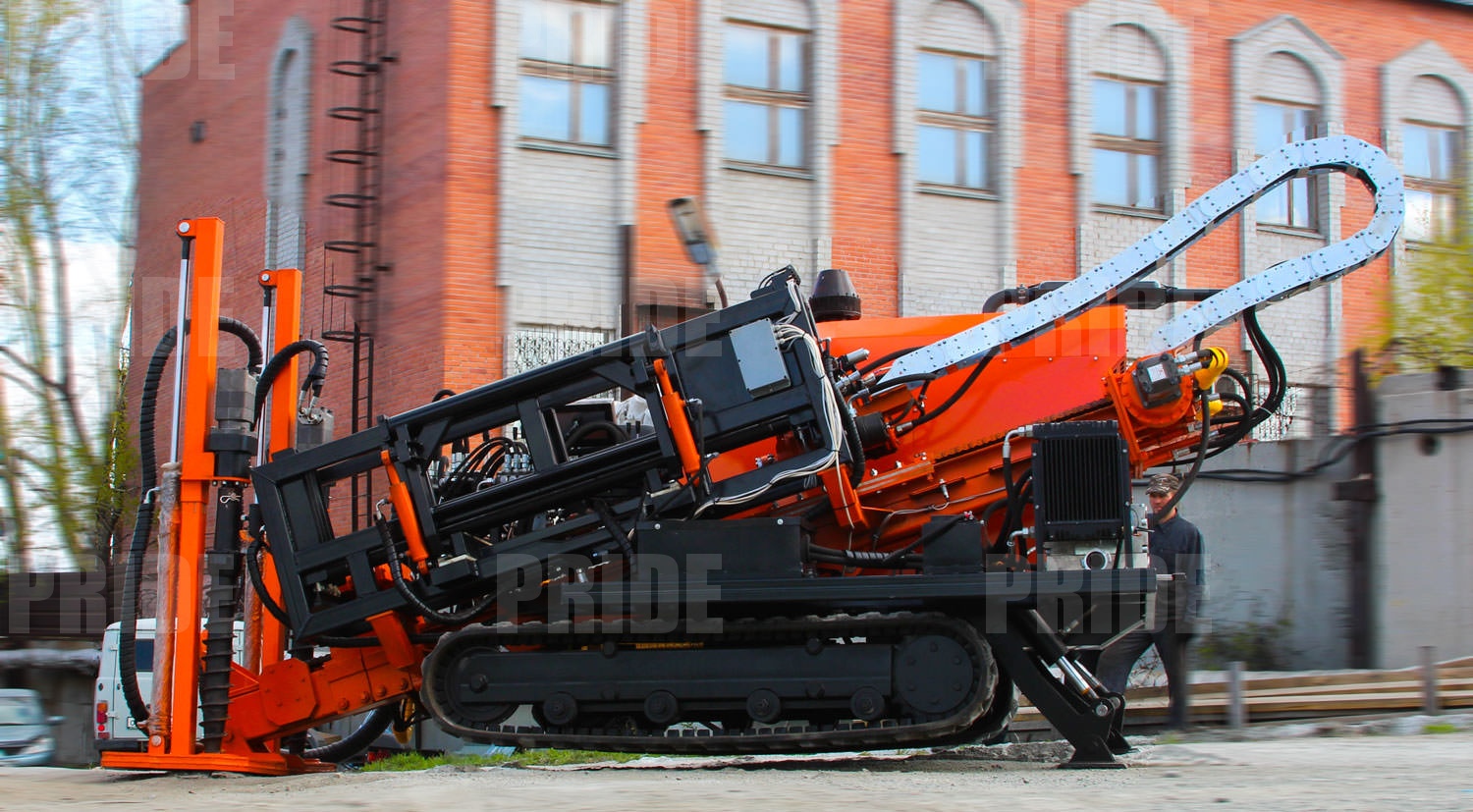

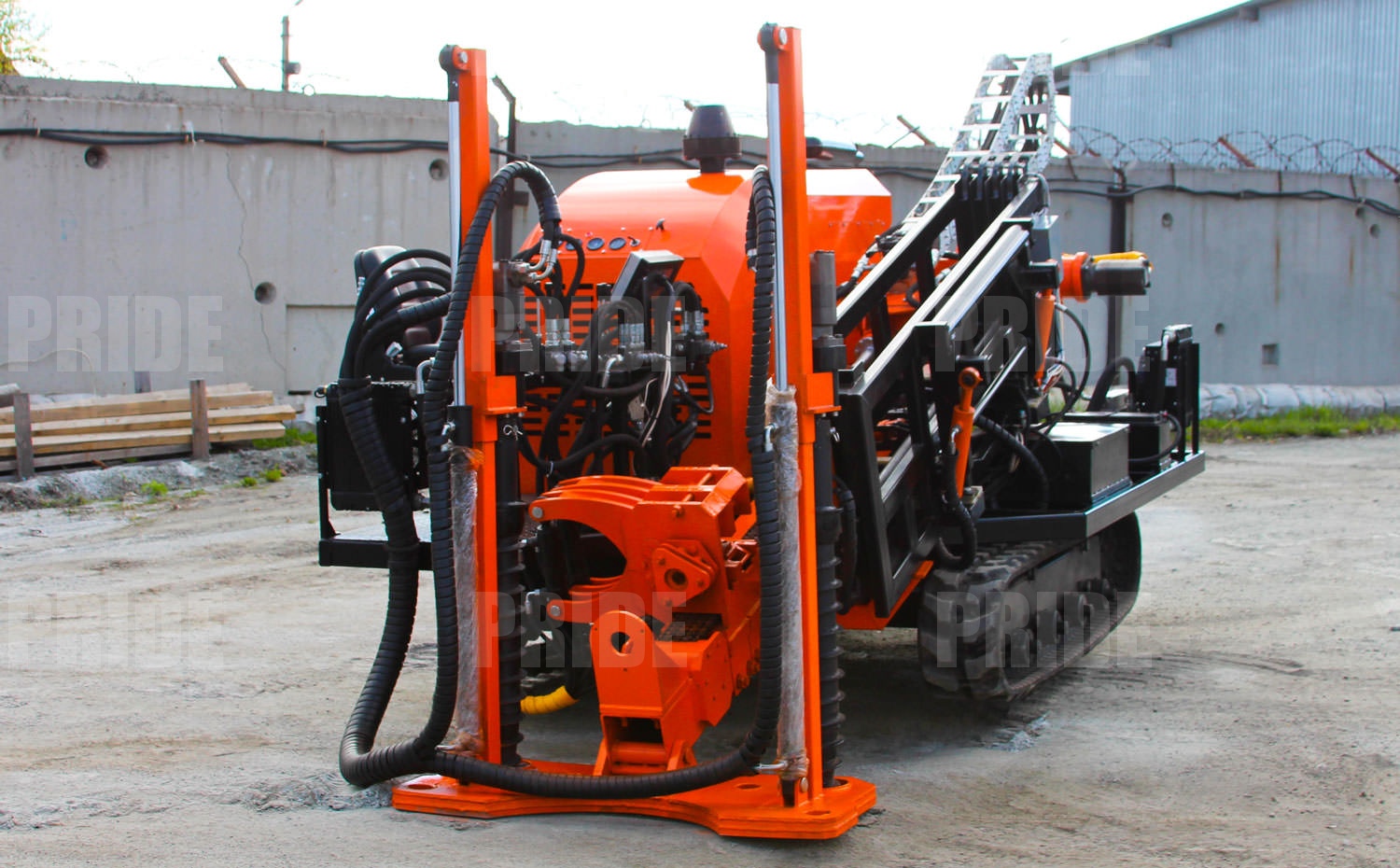

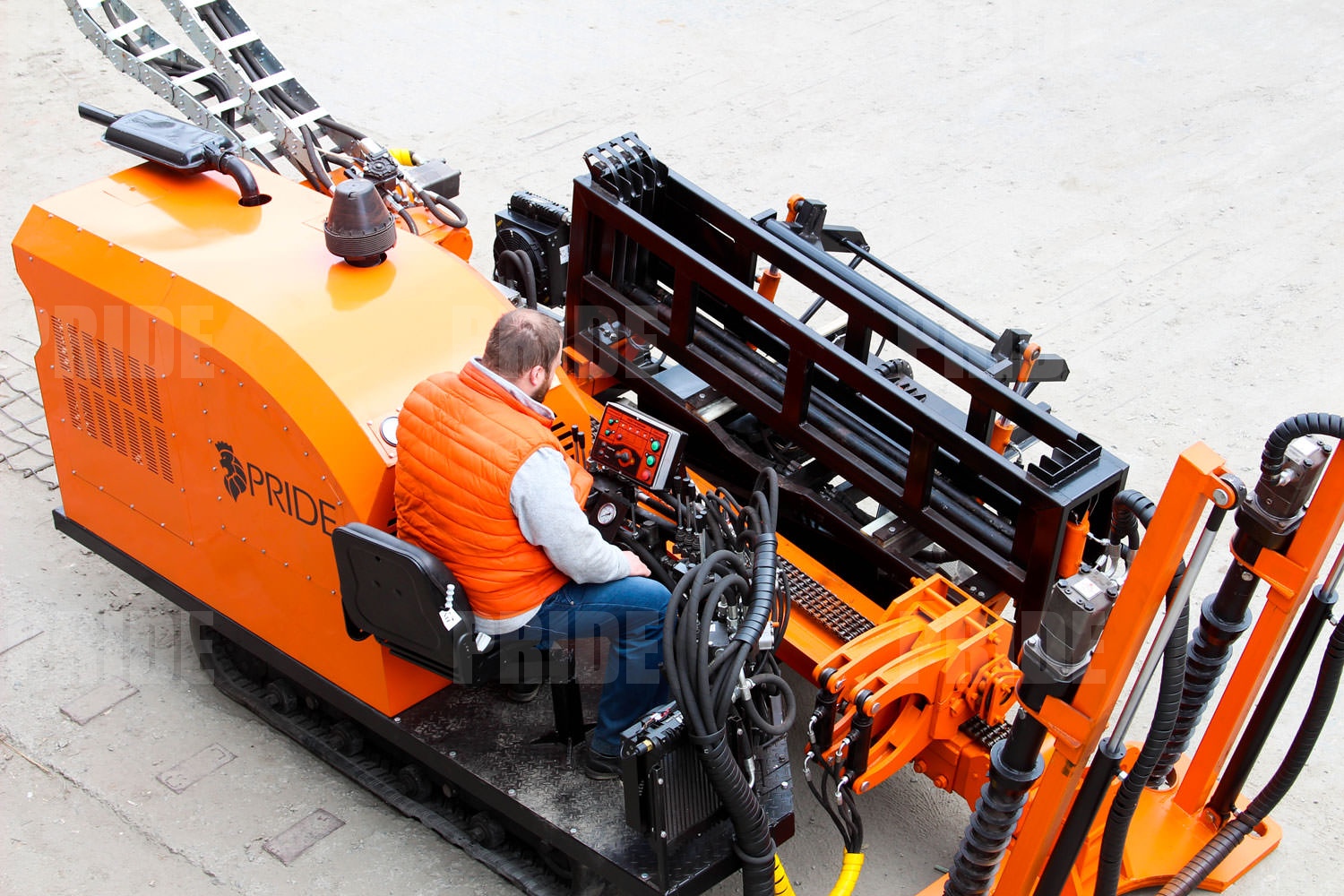

This HDD rig is designed for laying communications with trenchless way for a length of up to 100 meters, the maximum diameter of pipes and cases does not exceed 300 mm. HDD rig S2x4 due to it`s small dimensions can be work in tight urban conditions. Equipped with automatic feeding of rods and customer's wish is completed by all necessary tool.
|
Parameters |
Quantity |
|
|
OPERATING |
|
|
|
The weight of the rig (kg) |
3700 |
|
|
Dimensions of rig (l/W / h): |
3870 х 1900 х 1800 |
|
|
Max. Drilling length (m) |
110 |
|
|
Max. Extension (mm) |
300 |
|
|
Anchor system |
2 screw anchors |
|
|
Swivel |
|
|
|
Мах. Torque (Нм) |
2000 |
|
|
Rotation speed, rev/min |
|
|
|
- I gear - II gear |
1100 Нm till 330 rev/min 2200 Нm till 165 rev/min |
|
|
high-pressure pump station |
|
|
|
Engine model |
D-243 |
|
|
Type of engine |
Diesel |
|
|
Hydraulic system pressure (bar) |
200/140, 160/120, 150 |
|
|
Engine power (кWt) |
60 hp |
|
|
Drilling rods |
|
|
|
Length (mm) |
till 1830 |
|
|
Diameter (mm) |
48-50 |
|
|
Pulling system of drilling rods |
|
|
|
Traction power, (кН) |
4000 |
|
|
Сarriage speed, (m/sec) |
0,2-1 |
|
|
Mast |
|
|
|
Automatic feeding system of rods |
yes |
|
|
Angle of drilling |
20° |
|
|
Pump system |
|
|
|
Type |
|
|
|
Мах pressure |
|
|
|
Мах pump capacity |
||
|
Chassis |
|
|
|
Type of crawlers |
rubber crawlers |
|
|
Width of crawlers, (mm) |
300 |
|
|
Speed, km/h |
till 3 |
|
