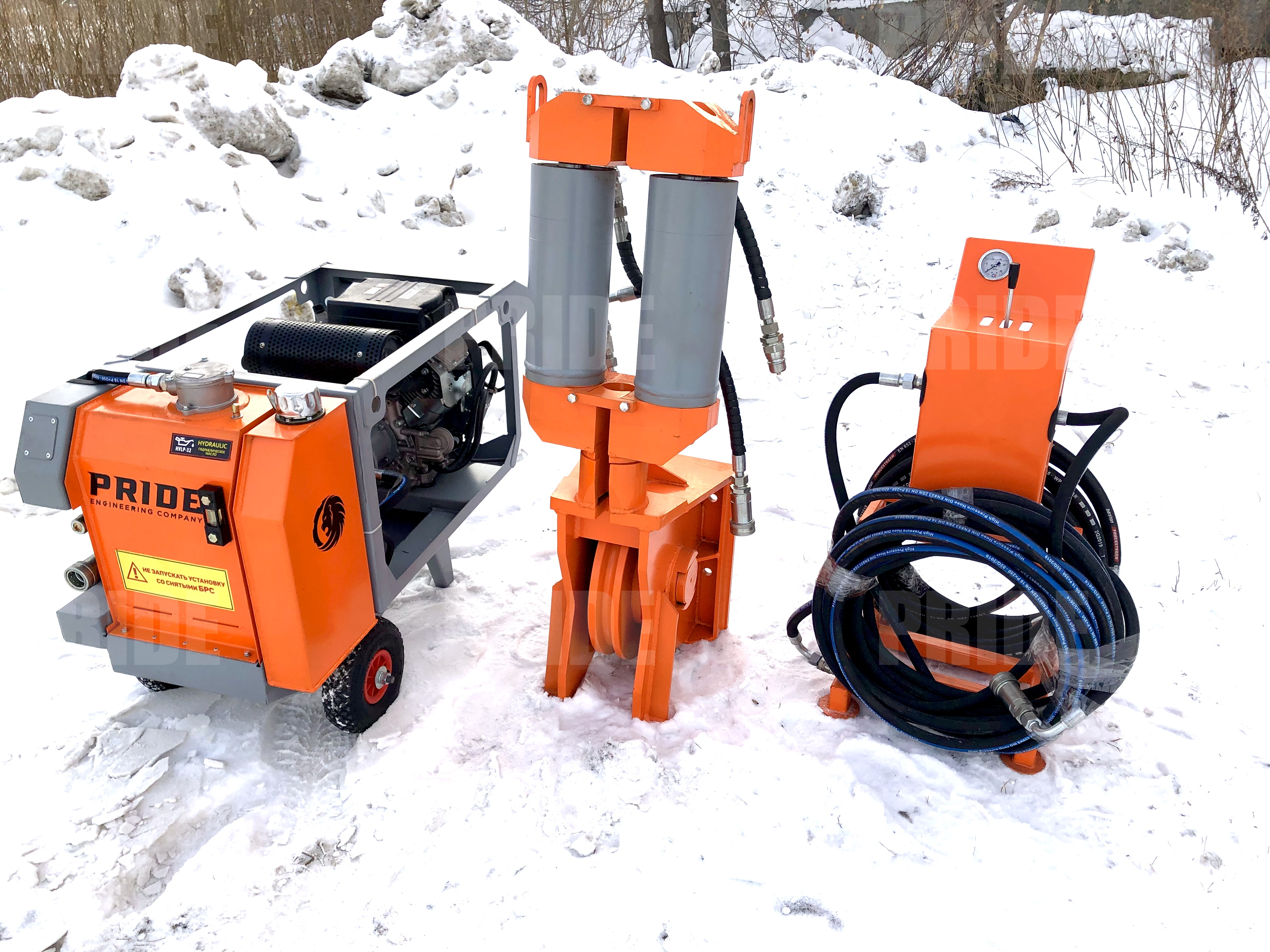

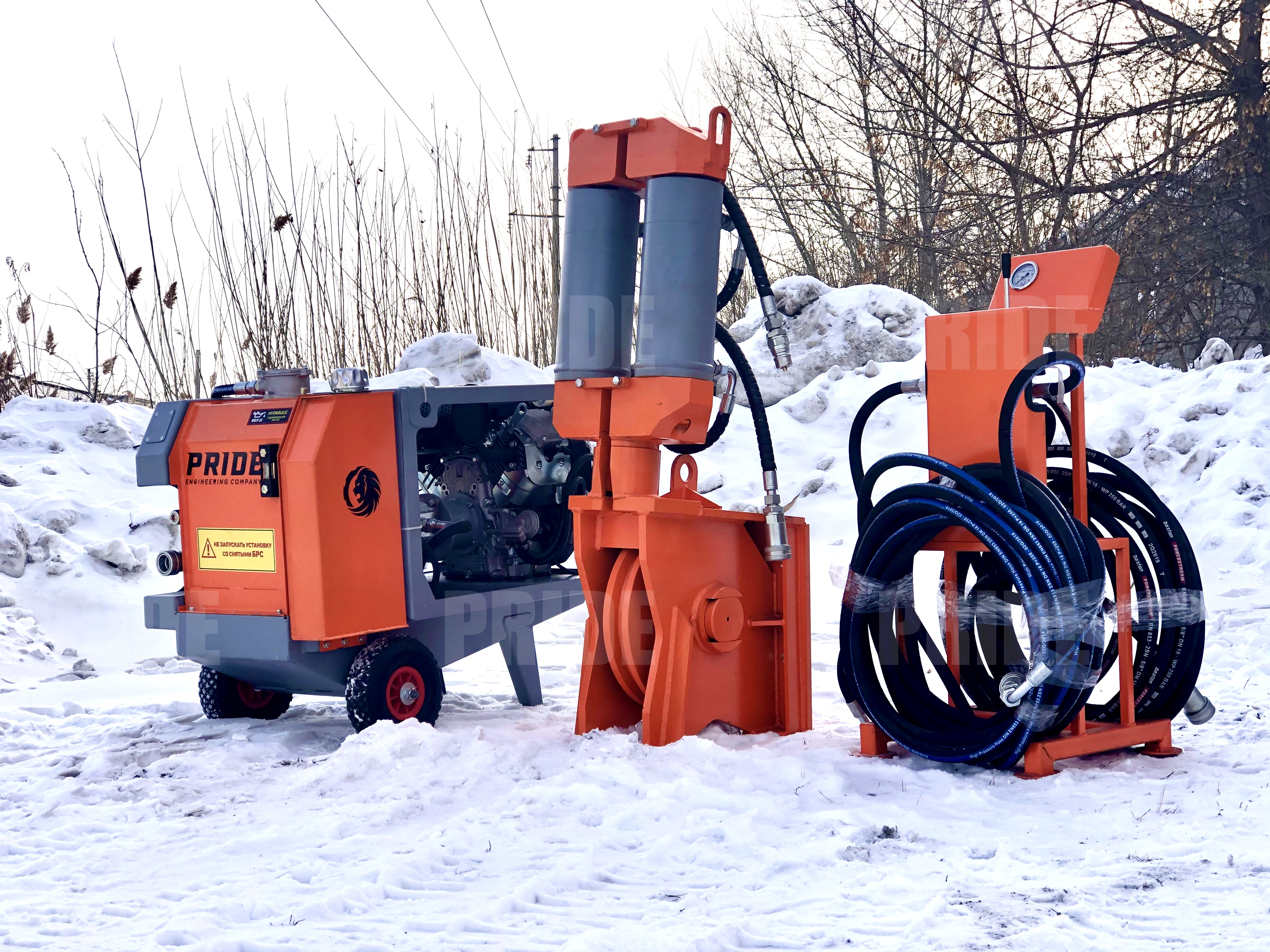

Pipe bursting rig 60 ton

Description
Specifications

Description

Pipe Bursting Rig are used to destroy existing pipes and to tighten new ones to their place.
This technology is used to replace water pipes of house inputs in residential and commercial buildings, in the renovation of water supply and sewerage networks, for the installation of cable boxes and communication lines. The rig is compact enough and can be used effectively in cramped conditions.

Specifications

Max pulling force	(60 tonn) 210 bar
Old pipe	Ø 35 - 300 mm
New pulling pipe	Ø 65 - 380 mm
Length	till 150 m
Speed of pulling	60 m/h
Маx. Working pressure	180-210 bar
Hydraulic oil flow	20 - 60 l/min
Pulling rope	Ø 32 mm
Weight (without rope)	470 kg
