Characteristic |
Value |
|
Conditional drilling depth, m: |
|
|
- pipes with a diameter of 60.3 mm; 63.5 mm |
1000 |
|
- pipes with a diameter of 73 mm/ 89 mm |
500 / 300 |
|
Recommended pipe drilling diameter, mm: |
60,3; 63,5 |
|
- initial, mm |
243 |
|
- final, mm |
93 |
|
Recommended pipe drilling diameter, mm: |
73; 89 |
|
- initial, mm |
394 |
|
- final, mm |
190 |
|
Load capacity, kN (TS)) |
196 (20) |
|
Rotator |
|
|
Type of rotator |
Rotary R-410 |
|
Maximum torque on the spindle, N*m |
7 850 |
|
Rotation speed of the rotary system, rpm |
2,16 |
|

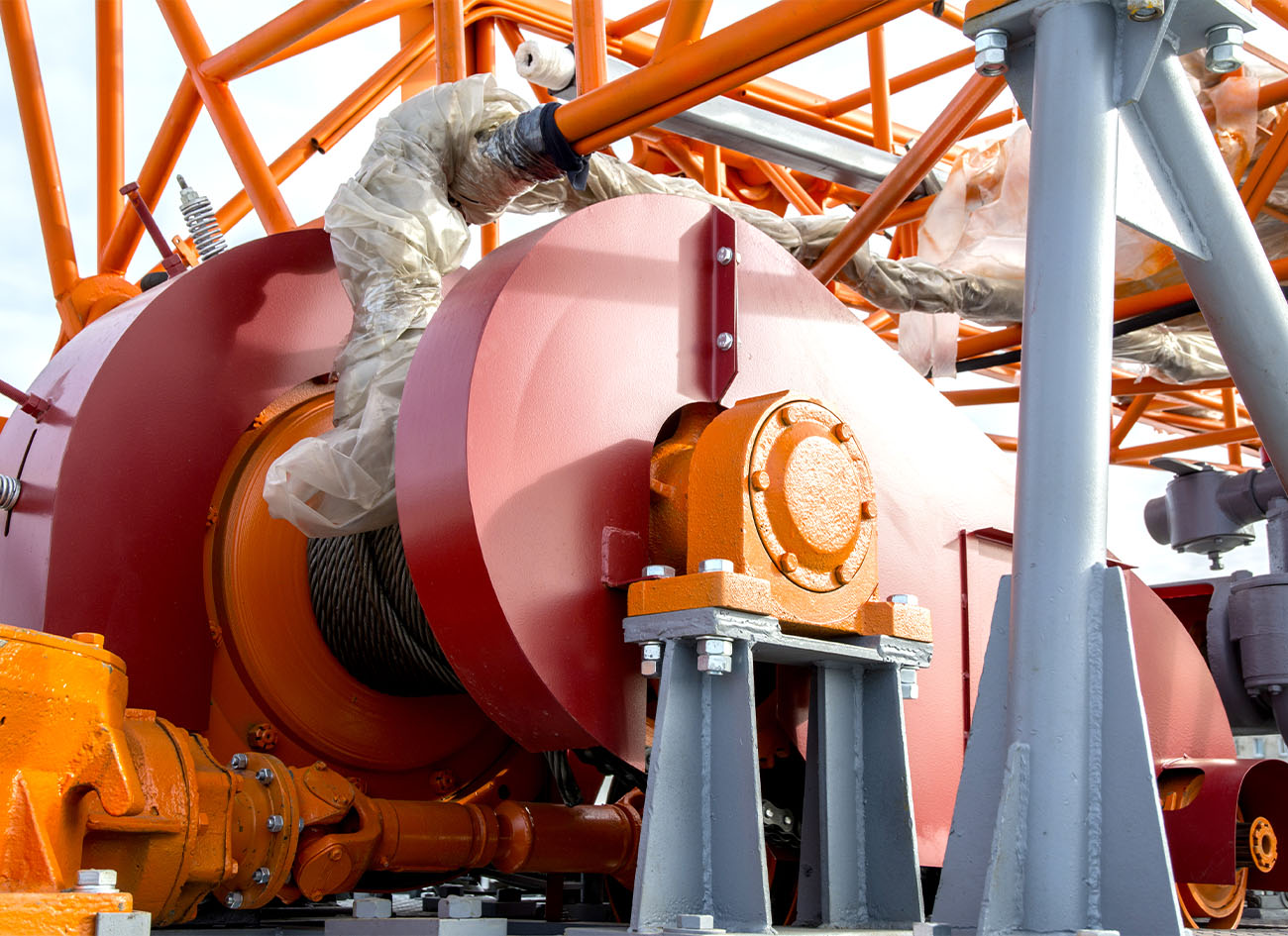

Winch |
|
|
Type of winch |
two-drum |
|
Cable winding, m |
120 |
|
Mast |
|
|
Type of mast |
Steel, welded |
|
The recommended length of the candle, m |
6-12 |
|
Pumping equipment |
|
|
Power, kW |
125 |
|
Diameter of replacement bushings, mm |
100 / 115 |
|
Volume flow, dm3 / sec (m3 / h) |
11,7 (42) / 15,9 (57) |
|
Maximum pressure, MPa |
10,0 (100) /7,5 (75) |
|
Compressor |
|
|
Compressor |
S415M |
|
Overall dimensions of the drilling rig |
|
|
Length, mm |
10200 |
|
Width, mm |
4400 |
|
Height, mm |
18850 |
|
The largest weight of the drilling block in the world. Position, kg |
16700 |
|
Transport base |
|
|
Tractor trailer |
OZTP-8470 or equivalent |
|
THE PARAMETERS |
NB-125 |
|
Stroke length of the piston, mm |
250 |
|
The frequency of rotation of the transmission shaft (max), rpm |
511; 388; 337 |
|
Diameter of the suction / discharge pipes, mm |
100/50 |
|
Overall dimensions, mm, no more than |
2353х980х2005 |
|
Weight, kg, no more than |
3190 |
