Rod Pusher P20 Pit

Description
Specifications
Tool

Description

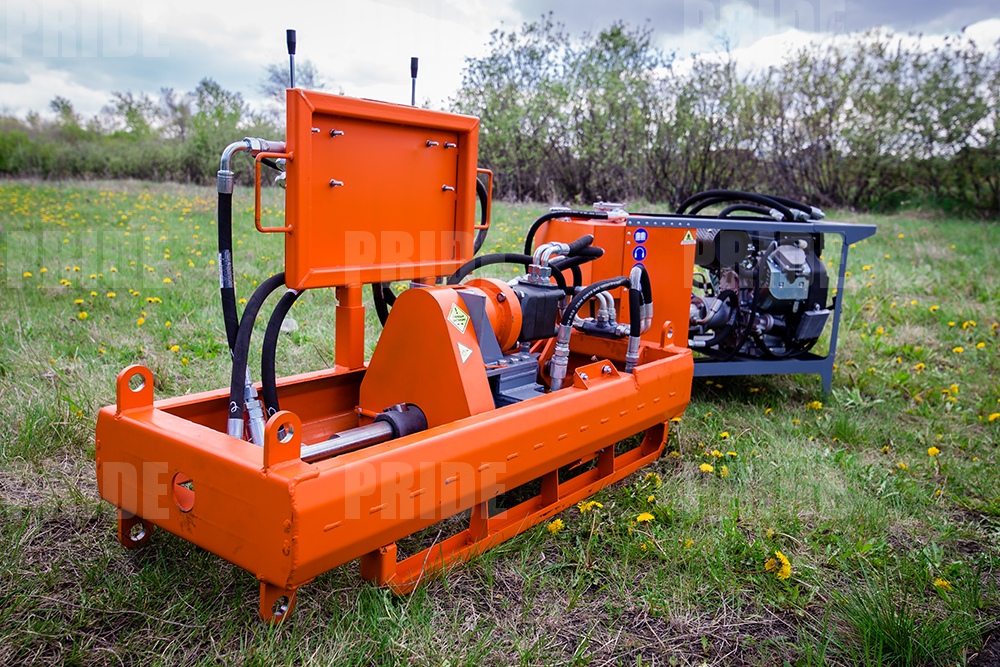

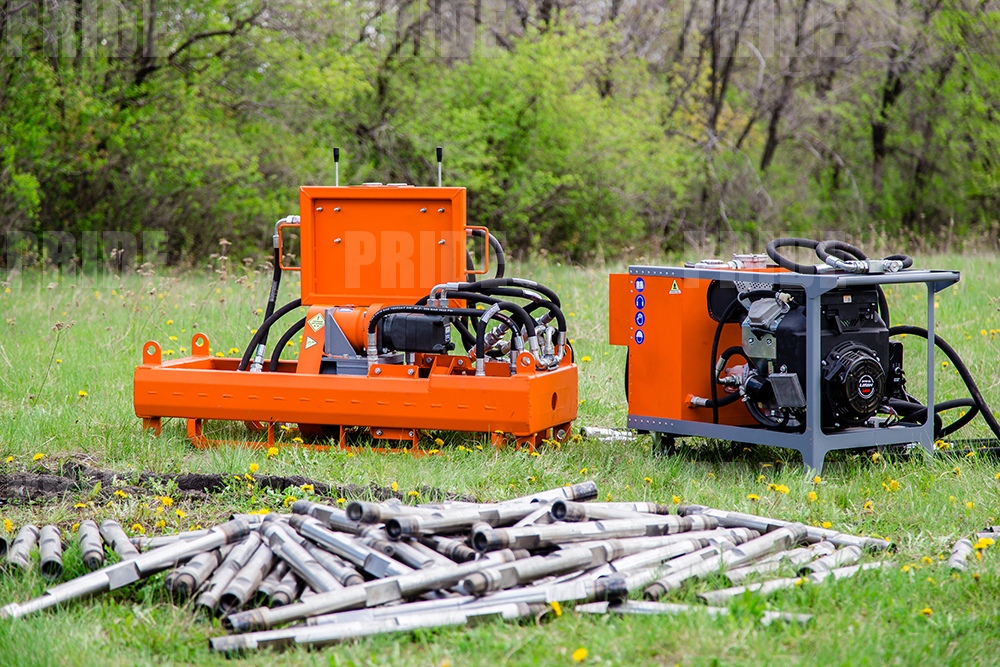

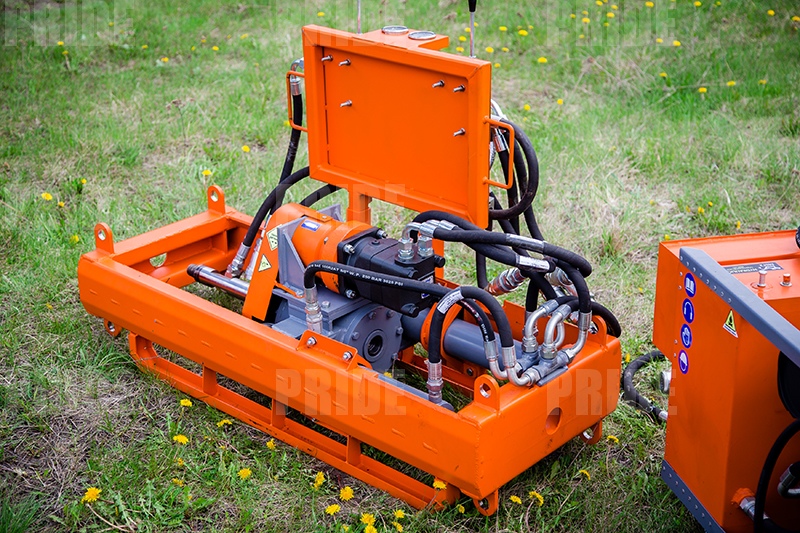

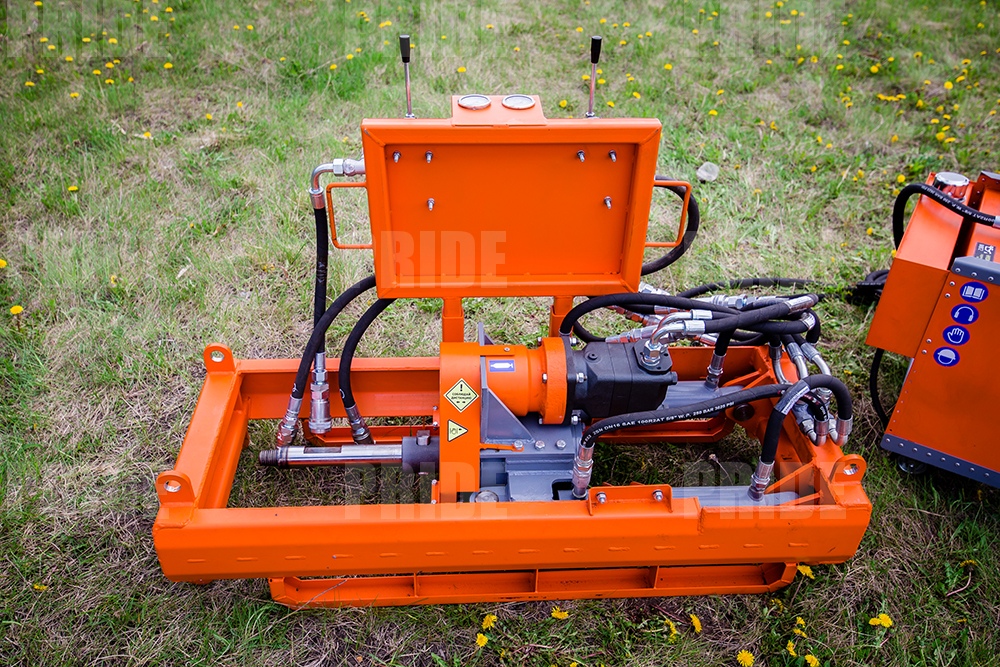

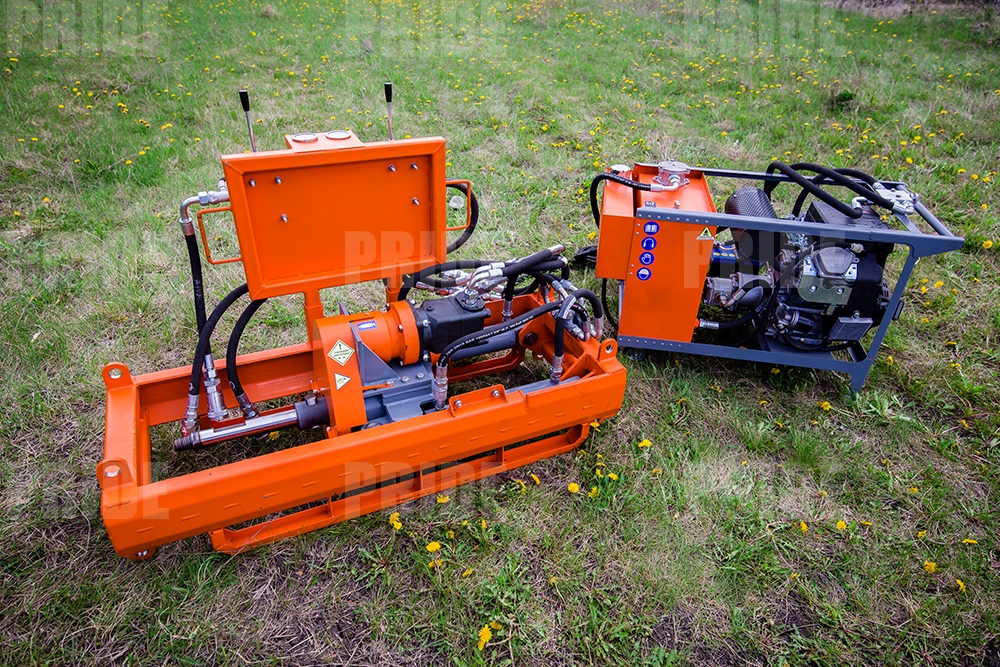

This model is one of the modifications of controlled puncture rigs. P20 PIT rig trench type with 20-ton pulling capacity, dual-flow hydraulic system. P20 PIT allows to lay communications at a length of 50-70 meters without deviation and error, as the whole process is controlled by the underground tracking system. At the request of the customer, the Mini HDD Rig P20 Pit can be equipped with an inclined platform with anchorages to perform work from the surface at an angle. We have completely modernized the production process of the plant - now the frame and supporting structures are produced using high-precision laser cutting technology of metal with subsequent bending of the frame blanks.

Specifications

Parameters	Quantity
OPERATING
Маx. length of drilling, m	70
Max. Expanse diameter, mm	350
Size (LхWхH), mm
Rig base high-pressure pump station	1200х500х480 1250х520х720
Weight (kg)	250
Weight of parts, kg
- Rig base - frame* (optionally) - high-pressure pump station	150 30 130
Rig base
Мах. pulling force (кН) Max torque (Hm) Rotation speed (rev/min)	200 2000 10
high-pressure pump station

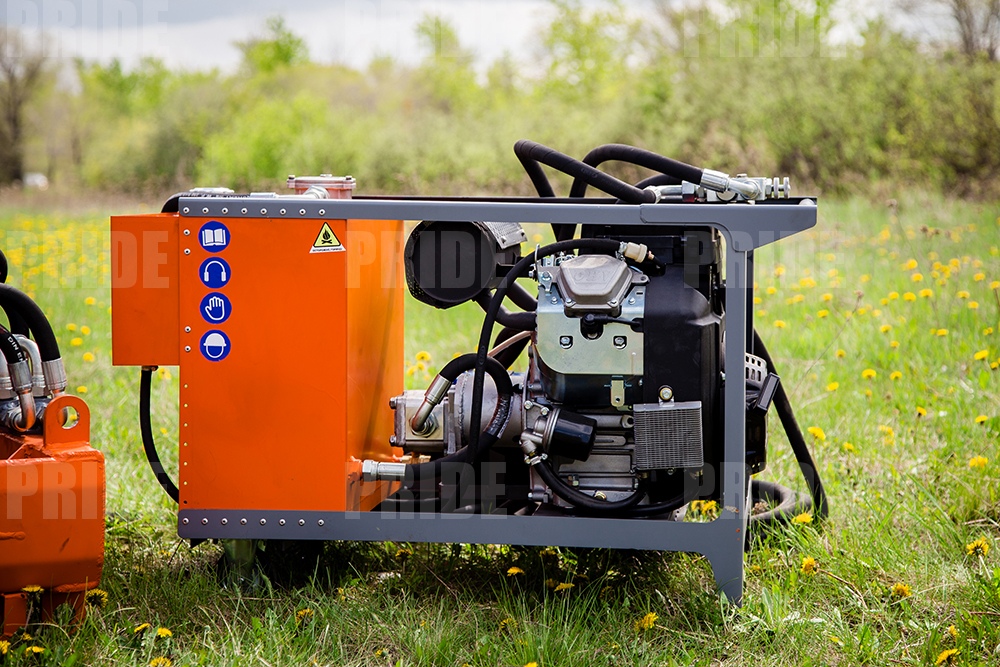

Engine model	Lifan 24hp
Engine type	Gasoline

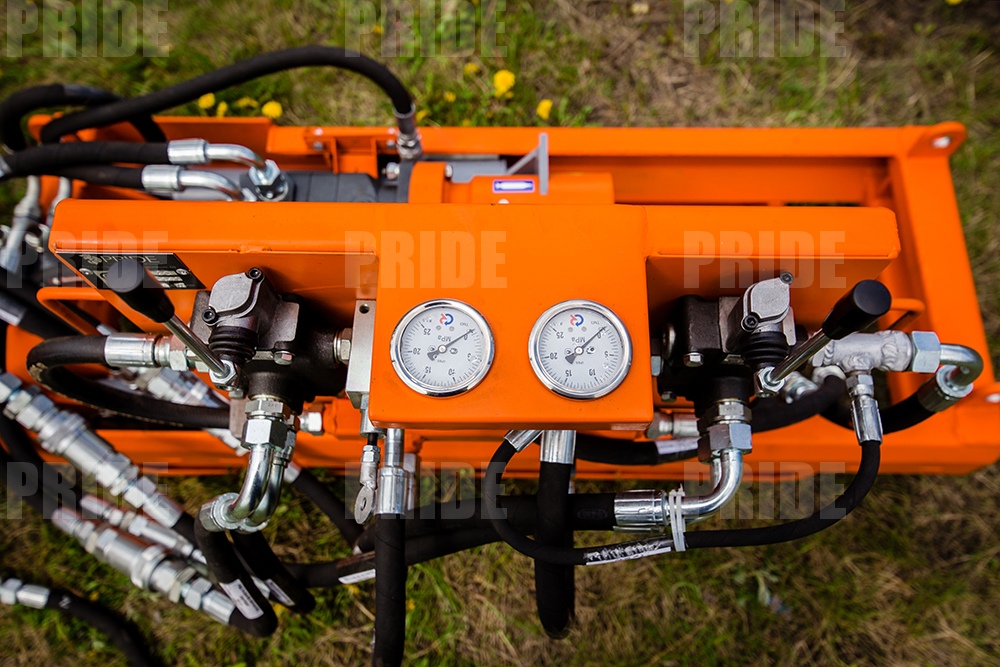

Pressure in hydraulic system, (bar)	180
Power of engine, (hp)	14,71
Drilling rods
Length (м)	650
Diameter (мм)	50
grade of steel	40Х

Tool

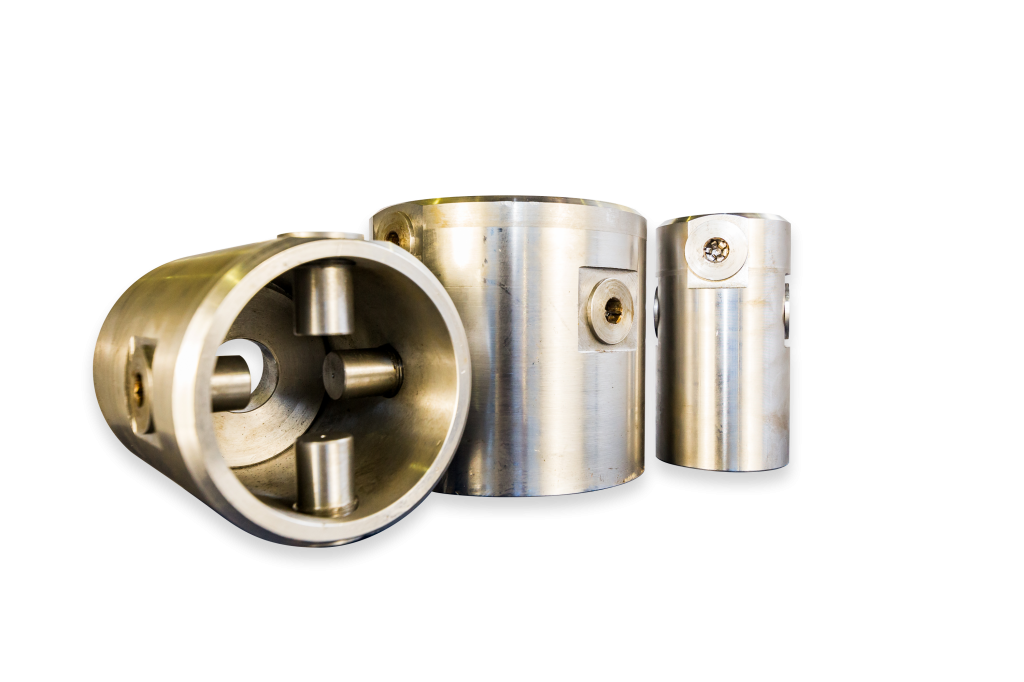

Pipe clamps Pipe clamps are used to fix HDPE pipes when pulling into the well. Made of solid metal, the grips securely fasten the pipe, by means of four fixing fingers

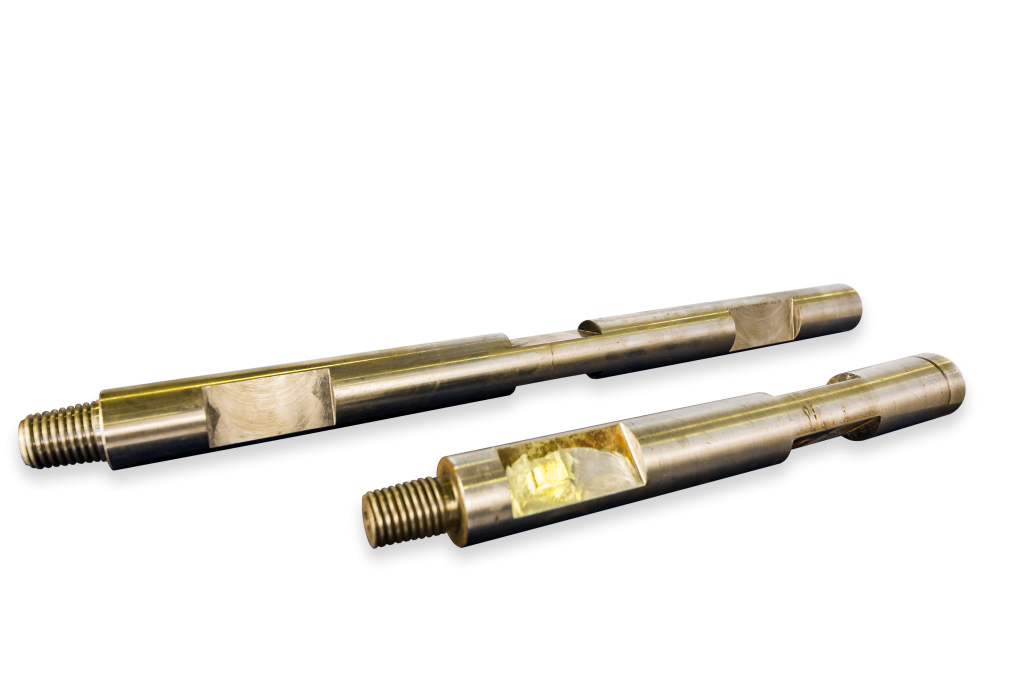

Drilling rod Rod L=694 mm (including threaded connection), working length l 650, steel 30HGSA, thread hardened 3-38 GOST R 50864-96. For ease of use on the drill rod there are 3 "ski", instead of the standard two

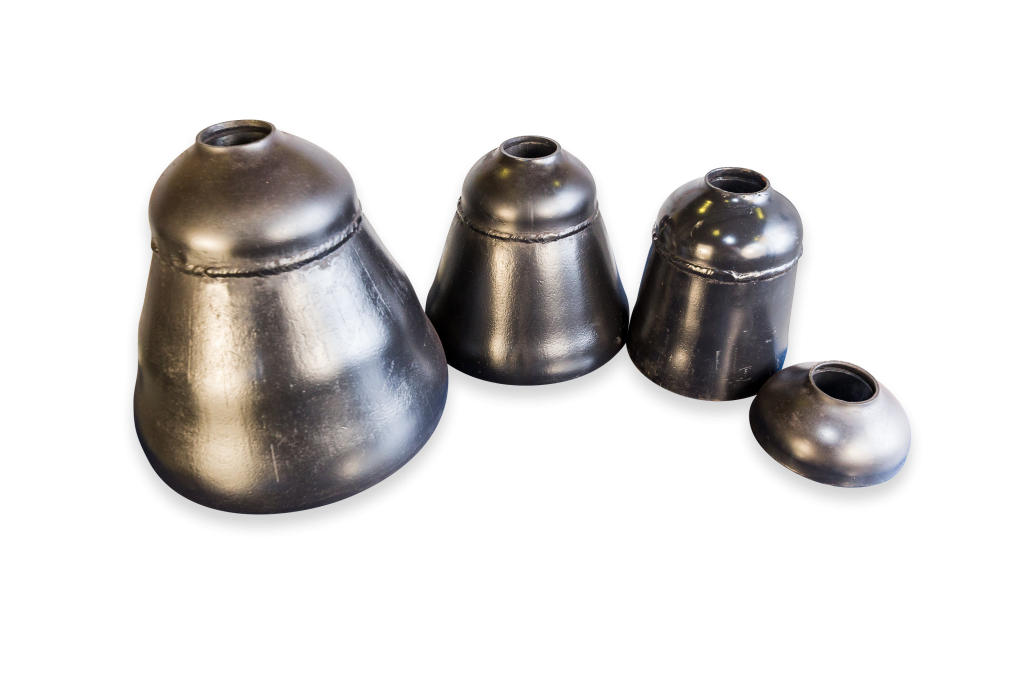

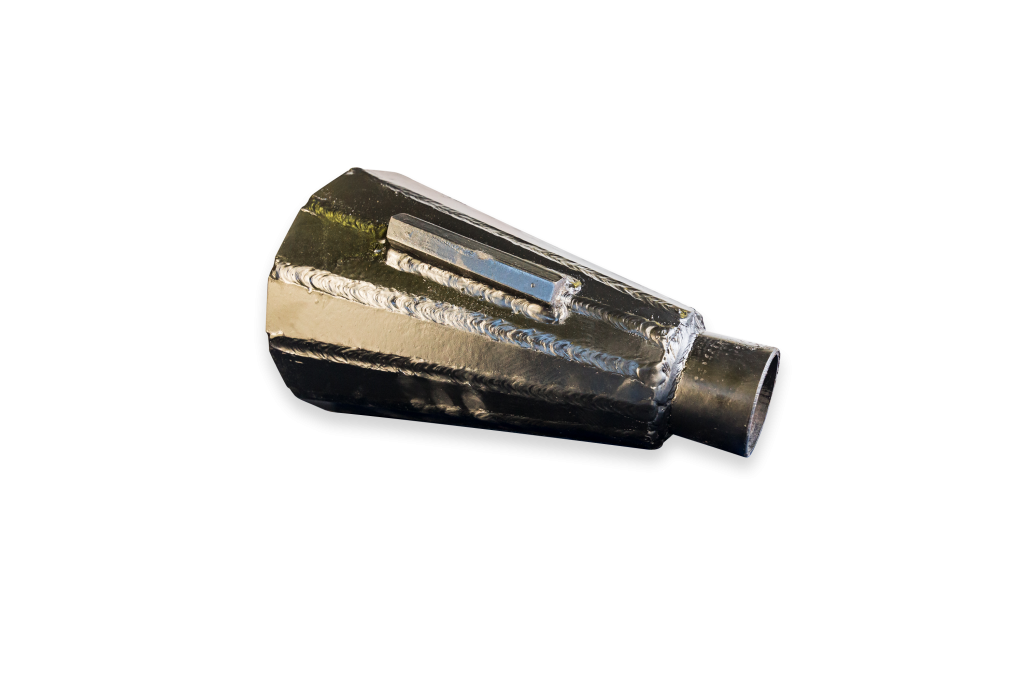

Back-reamers of different diameter A new model of back-reamers developed by the designers of our company. Now dilators have become easier, as well as reduced the compaction angle Now it is 30 degrees, instead of 70, which greatly facilitates the work in soils 1-3 categories. The model range of back-reamers is represented by a variety of diameters from minimum 90 mm to maximum 400 mm (for a some types of rigs)
Pipe bursting of cast-iron pipes Shown in the photo the model is designed for the bursting of the only cast-iron pipes. Our company can make a tool for the pipe bursting from any material: steel, ceramics, etc.

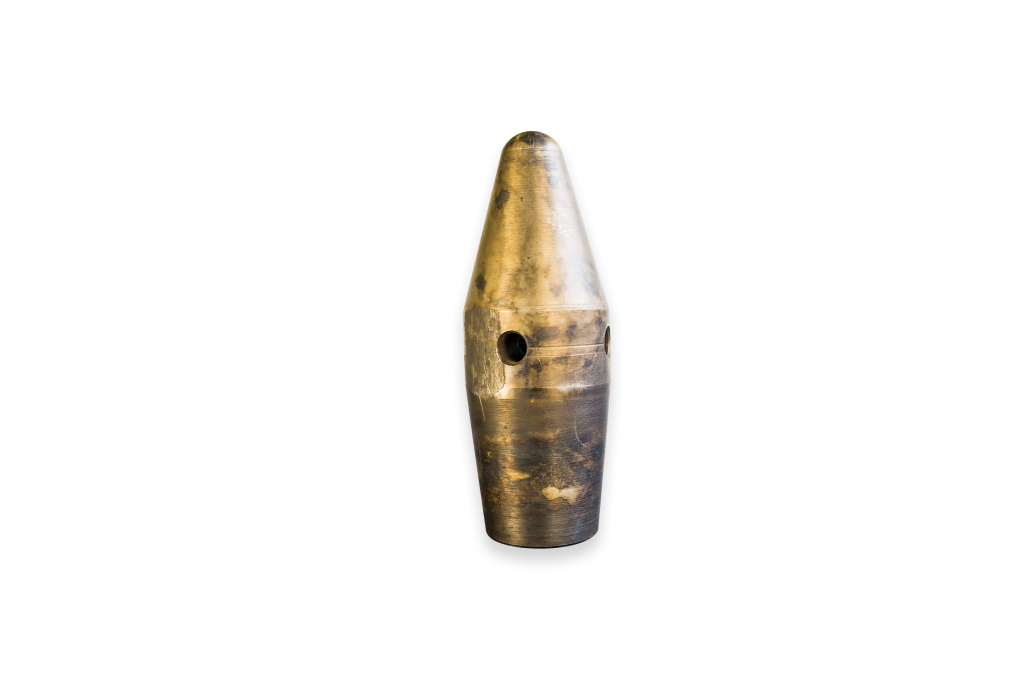

Drilling spear The drilling spear has a cylinder shape and is used in pilot drilling. The updated model of our drilling spear has a larger area and diameter than the diameter of the rod, which will fully protect you from the so-called "sticking rod" in the ground.

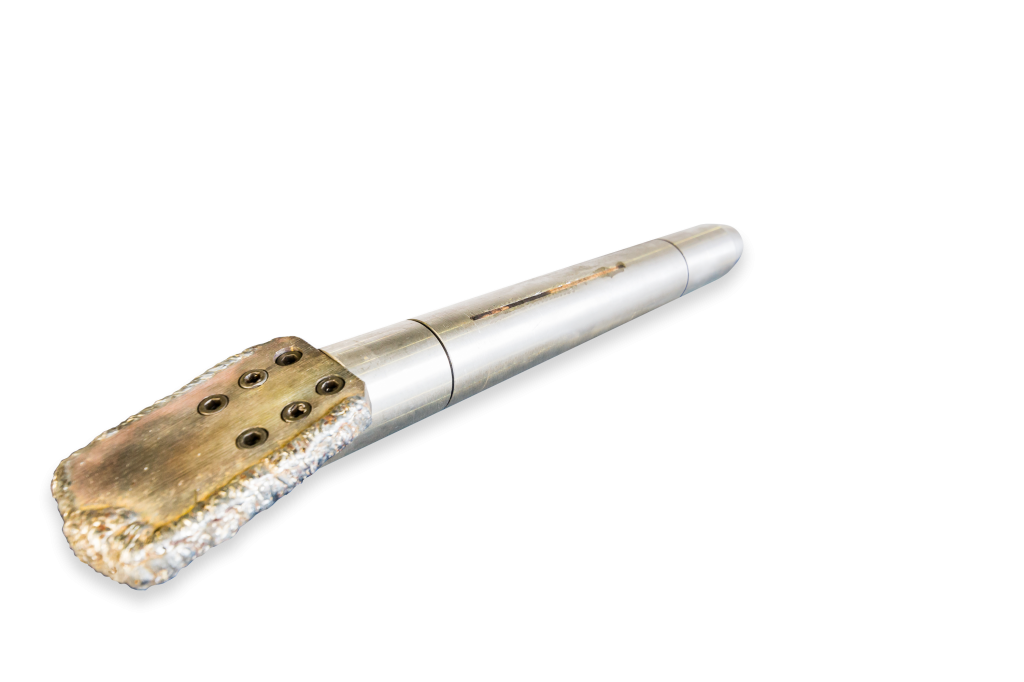

Drilling pilot In the manufacturing of drilling pilots, we choose end loading of the probe, as such loading completely eliminates the loss of the probe under the ground when working in difficult soils. On the drilling blade uses a special soldering, which provides wear resistance of the drilling pilot.We also use textolite material for better signal permeability and protection of the probe from dirt and damage.
