Crawler base Model XL

Description
Specifications

Description

Description Crawler self-propelled chassis. Tracks rubber reinforced, load not less than 7000 kg. Specifications Track base with support rollers, driven sprocket tensioner, drive sprocket. The frame of the undercarriage is made of profiled pipes. The drive of the tracks is carried out by hydraulic motors M+S Hydraulic MT-500 through gearbox GPRS. Gear ratio 4.4; torque 5000 Nm. It is possible to change the width of the base, width and length of the tracks in agreement with the customer. The speed of movement of the caterpillar base 3-5 km/h.

Specifications

- Crawler base with support rollers, driven sprocket-tensioner, drive sprocket
- Running frame made of profiled pipe
- The drive of the tracks is carried out by hydraulic motors M + S Hydraulic MT-500 through GPRF pressure regulator
- Gear ratio 4.4; a torque of 5000 Nm
- It is possible to change the width of the base, width and length of the caterpillars as agreed with the customer
- Speed of moving the crawler base is 3-5 km / h

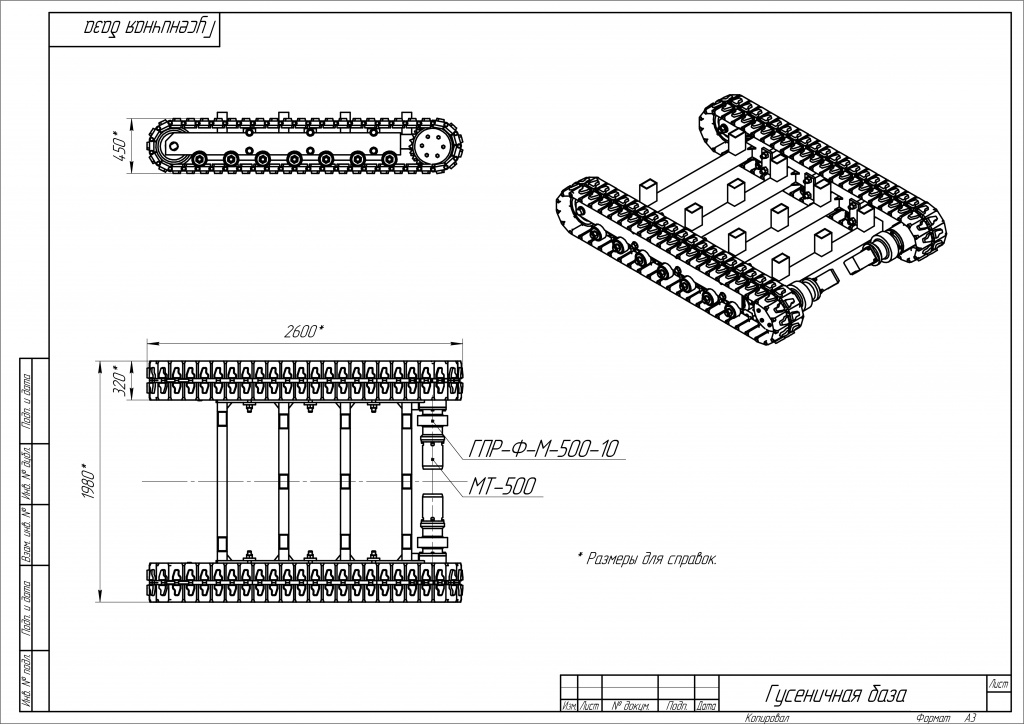

Гусеничная база XL.jpg
